FireGuard®
Insulated Vault and File Room Doors
Prices have increased while we await our new site. Please call for current pricing 856-368-9085 |
||||||||||||||||||||||||||||||||||||||||
Now On Sale Half Price 50% Off List Price |
||||||||||||||||||||||||||||||||||||||||
The strength and reliability of a Schwab Underwriters' Laboratories Standard 155 compliant Insulated Vault or Fire Room Door draws from over 130 years of protecting your records and other valuables. The Insulated Vault Door should be utilized where an N.F.P.A. rated fire resistant vault is appropriate. The Insulated File Room Door could be specified in an instance where the construction of a fire resistant vault is impractical, but maximum protection from fire is still warranted. All Schwab doors carry a Class B Mercantile Burglary Insurance rating for security, Underwriters Laboratories, Inc. labels and certifications for times specified. The unique design of the Schwab door frame allows for easy, non-grout installation in walls 7" - 18" thick. For further protection and safety, each door includes an inside escape mechanism which can be easily located and operated, even in the dark. Two U.L. Standard 140 compliant re-locking devices automatically reset the lock bolt if the lock sustains tool or torch attack. A beveled vault threshold allows for easy passage of wheeled carts as well as a seamless transition of the door and its enviroment. Schwab's attarctive Vault and File Room Doors come in several colors and can be adjusted to accommodate a variety of wall thicknesses. All doors undergo rigorous testing by Underwriters Laboratories, Inc., including fire endurance tests for variable times, as well as additional tests involving water blasts to simulate fire hose spray and reheating for 1/2 hour. Every Schwab door performs at a level which exceeds its UL Standard 155 required rating. Both doors are equipped with a Standard Key Change Combination Lock as well as two UL Standard 140 Re-locking Device Mechanisms. Non-standard locking options that comply with other UL Standards are also available. The Schwab File or Vault Room Door will give the customer the same assurance that banks, schools, hospitals and many residential customers have relied on for over 130 years of protecting their valuables from fire and theft. |
||||||||||||||||||||||||||||||||||||||||
Insulated File Room Door | ||||||||||||||||||||||||||||||||||||||||
Class 350-1Hour | ||||||||||||||||||||||||||||||||||||||||
Architect's Specifications The contractor will furnish and install Schwab one-hour Insulated File Room Door(s), non-grouted, flat sill type. Door will bear these labels: Underwriters' Laboratories, Inc., Class 350-1Hour and Underwriters' Re-locking Device. Door will be 4 7/8" thick, with clear opening 78"H x 32"W or 78"H x 40"W. Vestibule will be adjustable to accommodate wall thickness of (7" to 18" - actual wall thickness must be specified). Entrance will be tapered no more than 10°. rear architrave will be removable. Door will be locked with 10 live bolts, each 11/16" in diameter, located five on each side of the door. All exposed bolt work will be heavily nickel-plated and permanently lubricated. Bolt work automatically retracts when handle is opened, and automatically extendsnwhen the door shuts, unless non-standard locking options are used. Bolts will be checked by a three-tumbler Group II Key Change Combination Lock equipped with Underwriters Re-locking Device to reset lock bolt if lock is damaged by tool attack. A second re-locking device, also U.L. certified, automatically deadlocks door bolts in case of tool or torch attack. Door will be equipped with inside escape mechanism. Door will swing (right, left) with hinges on (right, left) when facing door. Hinges will have roller-thrust bearings. Door frame will be furnished with leveling screws. Door will be installed in accordance with manufacturer's instructions supplied with each door. Door will be finished in textured paint. Color: gray, charcoal, forest green or tan. |
||||||||||||||||||||||||||||||||||||||||

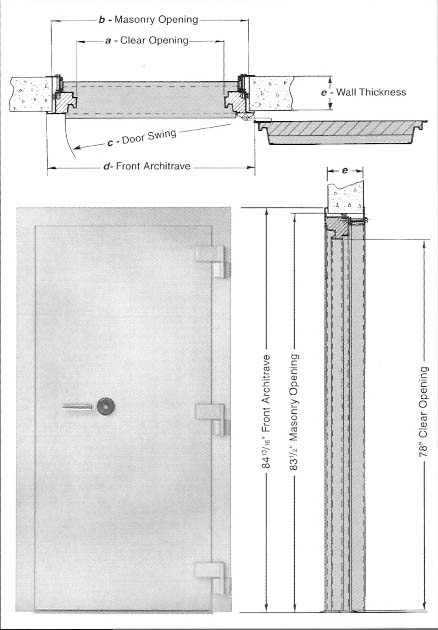

File Room Door Dimension Schedule | ||||||||||||||||||||||||||||||||||||||||
Door
Width
|
a
|
b
|
c
|
d
|
e
|
|||||||||||||||||||||||||||||||||||
32" 40" |
32" 40" |
42 1/2" 50 1/2" |
39" 47" |
45 1/8" 53 1/8" |
7"-18" 7"-18" |
|||||||||||||||||||||||||||||||||||
Factory Option: Stainless steel hinge cover is available. Installation instructions are furnished with each door. | ||||||||||||||||||||||||||||||||||||||||
Insulated Vault Door | ||||||||||||||||||||||||||||||||||||||||
Class 350-2Hour, 350-4Hour, 350-6Hour |
||||||||||||||||||||||||||||||||||||||||
Architect's Specifications The contractor will furnish and install Schwab Insulated Vault Door(s), non-grouted, flat sill type. Door will bear these labels: Underwriters' Laboratories, Inc., Class 350 (2, 4 or 6) Hour and Underwriters' Re-locking Device. Door will be 4 7/8" thick, with clear opening 78"H x 32"W or 78"H x 40"W. Vestibule will be adjustable to accommodate wall thickness of (7" to 18" - actual wall thickness must be specified). Entrance will be tapered no more than 10°. Rear architrave will be removable. Door will be locked with 10 live bolts, each 11/16" in diameter, located five on each side of the door. All exposed bolt work will be heavily nickel-plated and permanently lubricated. Bolt work automatically retracts when handle is opened, and automatically extends when the door shuts, unless non-standard locking options are used. Bolts will be checked by a three-tumbler Group II Key Change Combination Lock equipped with Underwriters Re-locking Device to reset lock bolt if lock is damaged by tool attack. A second re-locking device, also U.L. certified, automatically deadlocks door bolts in case of tool or torch attack. Door will be equipped with inside escape mechanism. Door will swing (right, left) with hinges on (right, left) when facing door. Hinges will have roller-thrust bearings. Door frame will be furnished with leveling screws. Door will be installed in accordance with manufacturer's instructions supplied with each door. Door will be finished in textured paint. Color: gray, charcoal, forest green or tan. |
||||||||||||||||||||||||||||||||||||||||
Vault Door Dimension Schedule | ||||||||||||||||||||||||||||||||||||||||
Door
Width
|
a
|
b
|
c
|
d
|
e
|
|||||||||||||||||||||||||||||||||||
32" 40" |
32" 40" |
42 1/2" 50 1/2" |
39" 47" |
45 1/8" 53 1/8" |
7"-18" 7"-18"" |
|||||||||||||||||||||||||||||||||||
Factory Option: Stainless steel hinge cover is standard on 4 and 6 Hour doors only. Optional at extra cost on 2 Hour doors. Installation instructions are furnished with each door. | ||||||||||||||||||||||||||||||||||||||||
Schwab Day Gates Designed specifically for use with Schwab Vault Doors, day gates restrict unauthorized entrance during hours the vault door is open. Deluxe Plexiglass glass Gate has a brushed aluminum finish. Gate fastens to the inside of vault frame. Hinge allows gate to swing easily into vault. Equipped with heavy duty key lock. Direction of day gate swing is determined by viewing day gate from inside the vault. Right swing hinges on right; left swing is the reverse |
||||||||||||||||||||||||||||||||||||||||
Escape Mechanism Standard on All Doors | ||||||||||||||||||||||||||||||||||||||||
Automatic door closer uses an electromagnetic system that releases the door when the sensor detects either heat or smoke. Closer than automatically shuts the door from its regular 180° open position. Sensor is not included in closer package. | ||||||||||||||||||||||||||||||||||||||||
Outside View | ||||||||||||||||||||||||||||||||||||||||
Inside View | ||||||||||||||||||||||||||||||||||||||||
Door Swing | ||||||||||||||||||||||||||||||||||||||||
Right Swing Vault Door - Left Swing Daygate | ||||||||||||||||||||||||||||||||||||||||
Right Swing Vault Door - Right Swing Daygate | ||||||||||||||||||||||||||||||||||||||||
Left Swing Vault Door - Right Swing Daygate | ||||||||||||||||||||||||||||||||||||||||
Left Swing Vault Door - Left Swing Daygate | ||||||||||||||||||||||||||||||||||||||||
Model
|
High
|
Wide
|
UL
Rating
|
List
Price
|
||||||||||||||||||||||||||||||||||||
Insulated File Room Door - Specify Right or Left Swing | ||||||||||||||||||||||||||||||||||||||||
1 2 |
78" 78" |
32" 40" |
350° - 1 Hour 350° - 1 Hour |
$7,113 7,929 |
||||||||||||||||||||||||||||||||||||
Insulated Vault Door - Specify Right or Left Swing | ||||||||||||||||||||||||||||||||||||||||
3 4 5 6 7 8 |
78" 78" 78" 78" 78" 78" |
32" 40" 32" 40" 32" 40" |
350° - 2 Hour 350° - 2 Hour 350° - 4 Hour 350° - 4 Hour 350° - 6 Hour 350° - 6 Hour |
7,480 8,507 7,877 9,174 9,556 10,752 |
||||||||||||||||||||||||||||||||||||
Locking Variations for FireGuard® Insulated Vault and File Room Doors | ||||||||||||||||||||||||||||||||||||||||
Combination lock, Group 2 Combination lock, Group 1R (x-ray and manipulation proof) Combination lock, Group 2 with key locking dial Combination lock, Digital Key Locking Handle Time Lock, 2 movement, left or right swing Time Lock, 3 movement, left or right swing 1/4" Drill resistant lock plate |
standard $457 196 367 211 2,606 2,806 78 |
|||||||||||||||||||||||||||||||||||||||
Accessory Equipment for FireGuard® Insulated Vault and File Room Doors | ||||||||||||||||||||||||||||||||||||||||
Description |
Shipped
w/Door
|
Shipped
Separate
|
||||||||||||||||||||||||||||||||||||||
32" Plexiglass day gate with key lock 40" Plexiglass day gate with key lock Stainless steel hinge cover for 1 and 2 hour doors Automatic Door Closer, right or left swing |
$1,422 1,488 129 2,054 |
1,601 1,682 160 2,085 |
||||||||||||||||||||||||||||||||||||||
Delivery and inside installation available. Check Delivery Information for details. Call 856-368-9085 for quote. | ||||||||||||||||||||||||||||||||||||||||
